USB to RS232 Module Based TTL PC PL2303 PL2303HX

$19.98 Buy It Now Sold, FREE Shipping, 7-Day Returns

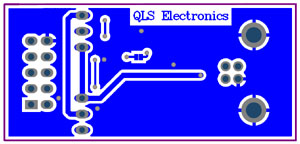

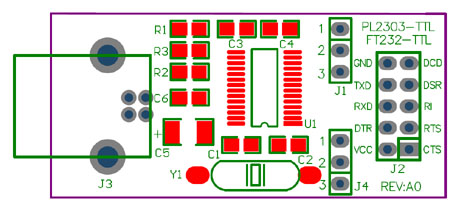

Seller: chenxueqian_cn2 (5,305) 66.7%, Location: shenzhen, Ships to: Worldwide, Item: 290406212438 pic16 Store The new Board is a USB - TTL serial converter cable which will allow for a simple way to connect serial TTL level devices to USB. The Board uses a PL2303HX chip, PL-2303 Software and Drivers: http://www.prolific.com.tw/eng/downloads.asp?ID=31 PL2303HX Datasheet: http://www.prolific.com.tw/support/files//IO%20Cable/PL-2303HX/Documents/Datasheet/ds_pl2303HX_v15E.pdf This BOARD Schematic: http://www.pic16.com/soft/PL2303-TTL_sch.pdf This Board PCB TopLayer: http://www.pic16.com/soft/FT232_PCB_TopLayer.pdf This Board PCB BottomLayer: http://www.pic16.com/soft/FT232_PCB_BottomLayer.pdf This Board PCB SilkscreenOverlay: http://www.pic16.com/soft/FT232_PCB_SilkscreenOverlay.pdf Package includes the following item: 1: USB to RS232 Module Based TTL PC PL2303HX * 1 Worldwide shipping by Registered Air Mail---- about 5-30days On Dec-15-08 at 15:40:40 PST, seller added the following information: Condition: New, Device Type: PL2303, Product Type: PL2303, Interface: USB

PicClick Insights PicClick Exclusive

  •  Popularity - Good amount sold, 4 Sold, 26 Available. N/A Views,
  •  Price -
  •  Seller - Over 5,305 items sold. 33.3% negative feedback. OK seller. eBay Money Back Guarantee: Get the item you ordered, or your money back!
