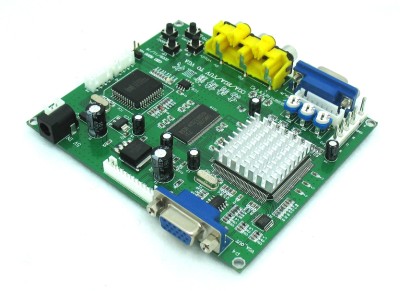

CGA/EGA/YUV TO VGA converter one VGA output arcade game

Descriptions

LCD monitor is becoming more and more popular and is much cheaper compared with other monitors. so why not just purchase this converter and use LCD monitor for your games .it will bring you a lot of benefit!!

This is a professional  game converter. Support all games(Amusement\Playstation\xBox\Wii)convert to CRT monitor \LCD monitor \PDP monitor .Auto scan CGA/EGA/YUV input signal,and with VGA output,output high resolution signal.

 Accessories : 8 pin video harness and 2 pin power wire

(if you need 5 pin (RGBS) cable ,please let me know before i ship your order )

 please notice : this is only for arcade game use , not for industrial or old computer device use.

---

Features

(1) Supports CGA/EGA/YUV signal input.

(2) Supports VGA output 640*480,800*600,1024*768,1360*768

(3) CGA/EGA signal auto scan(15K,24K,31K)

(4) YUV signal auto scan(480i,576i,720i,1080i,480p,576p,720p,1080p)

(5) Chinese and English OSD.

(6) Supports position control & zoom control.

(7) True digital 24-bit A/D converter for true 16.7-million color conversion.

(8) Supports all VGA monitor (CRT?LCD?PDP?PROJECT……)



---

specifications



Power	DC5V 2A  +/- 0.5v			P7 or P9
Input  signal	CGA/EGA	14.5-16.5K 23.5-25.5K 30.5-32.5K	Auto scan	P3 or P11 or P10
	RGBHV	30.5-32.5K	Auto scan	P10 or P11
	VGA	30.5-32.5K	Auto scan	P10 or P11
	Ypbpr	480p,576p,720p,1080p	Auto scan	P2
	Ycbcr	480i,576i,720i,1080i	Auto scan	P2
Output signal	VGA	640*480,800*600 1024*768,1360*768		P4 and P12
User control	Input Switch, Image Zoom, Image Position, Output Resolution ,R\G\B gain adjust.			Menu Key R\G\B VR
Dimensions	115*105*20mm





---

Structure Specification Image:





---

Operation Menu:

(MENU)                open OSD menu, and enter.

(UP)                      up and increase.

(DOWN/AUTO)    down and reduce.

    Press this key auto scan CGA/EGA signal

    Press this key over 5 second and release reset system

    (this operation is invalid when you open OSD menu)

(SW)                     switch input signal Ypbpr/RGBS/RGBHV.

           (this operation is invalid when you open OSD menu)

(Clamp sp) & (Clamp)

                             please don’t adjust this button , excepting the monitor have black

                             item,or picture discoloration.

More functions control please look to OSD to operation.



---

Applications:

Transfer high resolution low resolution, scan board, display, high resolution screen, LCD games, arcade LCD, HD game consoles, high resolution scanning, connectivity fighting, KOF board, LCD Landlords, turn Super 888,15 K 31K , CGA / EGA / YUV switch to VGA, CGA / EGA, CGA, EGA, 15K, 31K, RGBS switch to VGA, 24K switch to 31K, CGA switch to VGA, EGA switch to VGA, 32-inch LCD fighting machine, LCD fighting ring, the ultimate LCD fighting, game-specific liquid crystal display, 32 'LCD iron fist Wong, LCD around the world, dream of fighting, 32 "high definition LCD screen games, Tekken LCD machine.
