AIRDOG FUEL SYSTEM 99-03 FORD POWERSTROKE DIESEL 150G
|
|
AirDog Fuel Systems
Fuel/Air Separation & Filtration System
1999-2003 7.3L Ford Powerstroke Diesel
FREE U.S. SHIPPING
Alaska, Hawai, Puerto Rico and International buyers please email for a shipping quote.
Product #A4SPBF171
Original Airdog System DF-150 Non-Adjustable Regulator
Supplies Fuel to the High Pressure Pump
10psi
Now with Quick Connect
Takes 30-40 minutes Less Time to install
Benefits
Removes AIR / Vapor from Diesel Fuel
Pure Diesel Fuel reaching Engine
High Flow Rates of Fuel to Engine
Longer Injector Life
Increased Injection Pump Life
Increase Fuel Economy
Optimize Engine Performance
Increase Torque Output
Improve Throttle Response

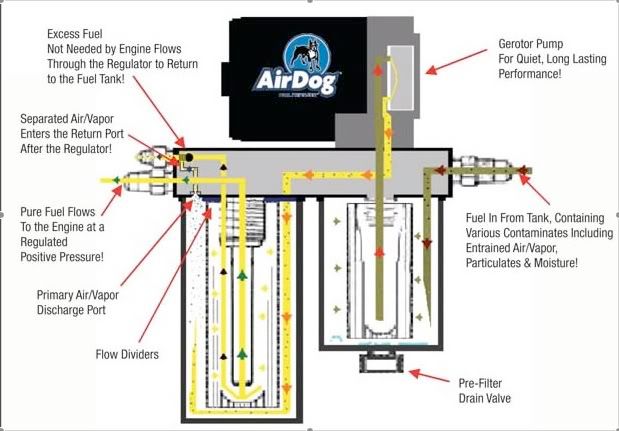

Fuel Preporator Technology
The AirDog® Fuel Preporator®, with the capability to provide fuel at flows and pressures beyond the maximum requirements of the engine, receives fuel under vacuum from the fuel tank containing entrained air/vapor, particulate contaminates and unknown quantities of moisture. The fuel passes through the water separator which removes the water and large particulate contaminates that could damage or jam the gearator fuel pump. The fuel, with only entrained air/vapor and tiny particulate contaminates remaining, enters the fuel pump.
The fuel, now under positive pressure flow, enters the filter. As the fuel passes through the filter media and the remaining particulate contaminates are caught and contained, the entrained air/vapor is also separated. Through the POSITIVE FUEL AIR SEPARATION FEATURES of the PATENTED FUEL PREPORATOR® the separated air/vapor is discharged from the filter through the Primary Air/Vapor Discharge Port and into the return to tank passage after the regulator. The fuel passing through the filter media (free of contaminates & power robbing air/vapor and at pressures and flows to meet the needs of the engine) exits the fuel filter through two passageways. The fuel for the engine, passes into the fuel pickup tube and out to the engine.
The excess fuel not needed by the engine is released through the pressure regulator to combine with the air/vapor and foam as it returns to the fuel tank. The regulator controls the fuel pressure to the engine.
Small & Compact: ONLY 7”L X 10”T X 3.2”W
Dual Feed Gerotor Pump: Quiet, Efficient, Long Lasting!
SINGLE PIECE PUMP BODY: Replaces the old 3 piece pump design reducing the number of parts, unit size, and weight. This results in a sleek, low profile pump assembly and eliminates the need for leaky, messy gaskets!
“VACU” SEAL TECHNOLOGY: All PureFlow® pump system shaft seals operate under vacuum instead of pressure for extra long seal life.
Mounts to frame - NO Drilling required!
